YXHT-2, 2KW FM Transmitter + RDS Encoder Total Two 2000 Watts Stereo Broadcast Equipments For Radio Station

Name: YXHT-2, 2KW FM Transmitter + RDS Encoder Total Two 2000 Watts Stereo Broadcast Equipments For Radio Station
Brand: www.hooyamall.com
SKU: 1005009030610508
Availability: InStock

Rated 4.5 out of 5

Original price was: $6,421.05.Current price is: $4,821.05.

SKU:

1005009030610508

Category:

Audio Equipment

Buyer protection

Safe shopping

Easy returns and refunds

Free shipping worldwide

Product details

Hign-concerned Chemical: None
Brand Name: YXFMTV
Origin: Mainland China
Certification: CE,FCC,weee

YXHT-2, 2KW FM Transmitter + RDS Encoder

Product Description

1. Overview

FM YXHT-2 2000W/LIGHT stereo FM radio transmitter is an integrated high-quality FM transmitter that stereo-encodes the input left and right channel audio signals and adjusts the FM modulation to the broadcast band, then RF amplify to the 2000W output power for wireless broadcasting. The transmitter adopts the most advanced software radio technology to achieve the international leading level of product performance indicators.

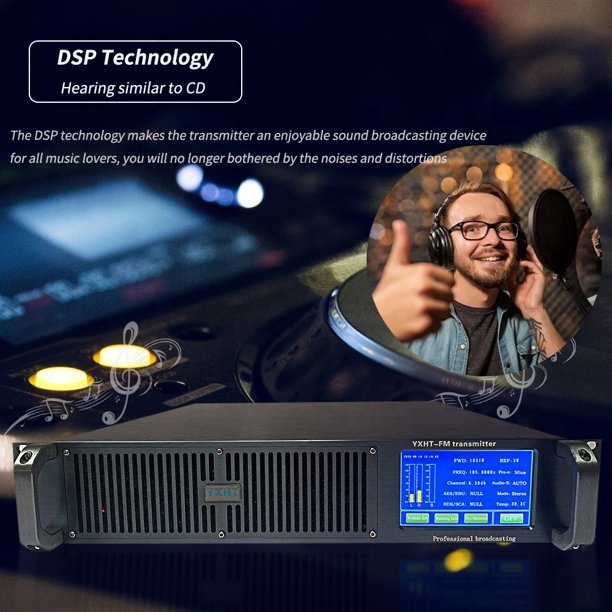

With a new large-scale field-programmable gate array (FPGA) and direct digital frequency synthesis (DDS) technology at up to 5G, the product achieves the highest technical specifications in the industry to date, providing listeners with a CD-like sound experience.

Technical specifications

1. Nominal emission frequency: 87.5MHz~108MHz (other frequencies can be customized), stepping 10kHz

2. Carrier frequency tolerance: ±200Hz

3. Output power: 0~2000W continuously adjustable

4. Output power tolerance: ±1dB

5. Output impedance: 50Ω

6. RF output connector: 7/16”or7/8”

7. Residual wave radiation: <-70dB

8. Parasitic amplitude modulation noise: <-50dB

9. Pilot frequency deviation: ±0.1Hz

10. 38KHz residual component in the S signal: < -50dB

11. 100% modulation frequency offset: ±75KHz (maximum modulation frequency offset 112.5KHz)

12. Audio pre-emphasis: 0μs/25μs/ 50μs/75μs optional

13. Distortion: <0.05% (30Hz ~ 15000Hz, 100% modulation)

14. Frequency response: ±0.1dB (no emphasis, no de-emphasis); ±0.2dB (emphasis, de-emphasis)

15. Signal to noise ratio: ≥88dB (1kHz, 100% modulation)

16. Stereo resolution: ≥70dB (L→R, R→L)

17. Left and right channel level difference: <0.05dB (100% modulation)

18. Analog audio input: -12dBm ~ +8dBm

19. Analog audio input impedance: 600Ω balance

20. AES input impedance : 110Ω balance

21. AES input level: 0.2~10Vpp

22. AES sampling rate: 30kHz ~ 96kHz

23. Audio Level Gain: -15dB~+15dB Step 0.1dB

24. Heat dissipation method: Forced convection

25. Power supply voltage: 100VAC~265VAC/ 47Hz~63Hz

26. Chassis Standard: 19″

27. Operating environment temperature: -10 ° C ~ +45 ° C

28. Relative humidity: <95%

29. Altitude: <4500m

The product consists of audio interface unit, digital processing and frequency modulation unit, RF power amplifier unit,

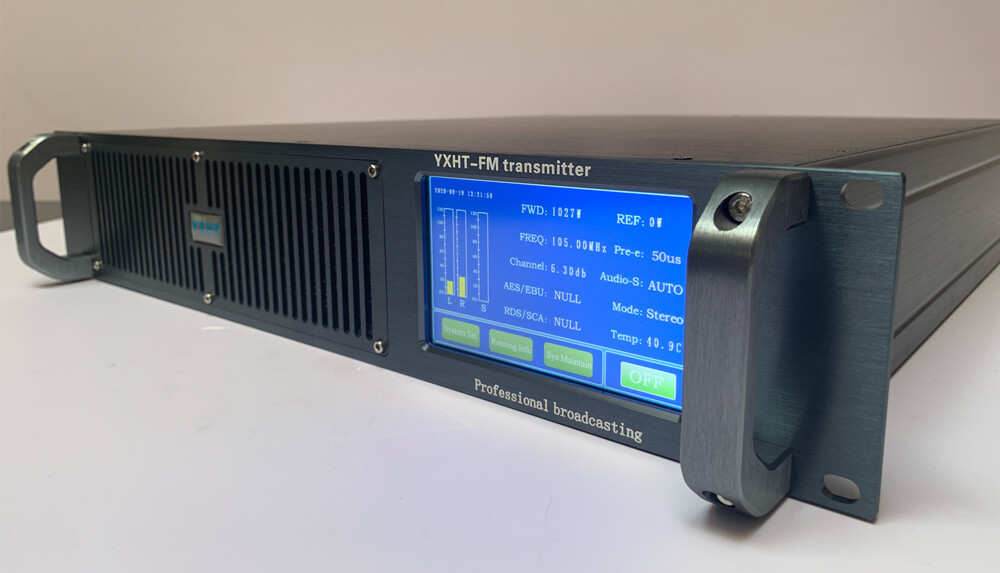

human-machine interface unit, communication interface unit, clock synchronization unit and power supply unit. The transmitter is installed in a 19-inch 2U standard chassis, intensive design, small size and light weight. The whole transmitter is designed with high reliability, which makes the product run continuously and stably for a long time.

Warranty: 6 years for all transmitters in our factory.

2. Technical characteristics and principle block diagram

Product technology has the following technical features:
• Full process digital processing to achieve a perfect auditory effect of CD-like sound quality
• Full-scale digital processing with large-scale field-programmable gate array (FPGA) technology
• Direct digital frequency synthesis (DDS) technology at speeds up to 5G to peak transmitter specifications
• High reliability microprocessor (ARM) technology as the primary controller
• Support for multiple audio source inputs (transmitters can be automatically selected by priority):
AES/EBU digital audio signal input (highest priority)
Analog stereo analog audio signal input (2nd priority)
MPX stereo composite signal input (3rd priority)
• Supports one RDS or SCA subcarrier input
• Upgradeable to FM synchronous broadcast transmitter
• Electronically controlled AGC controls output power zero drift
• Perfect over-current, over-voltage, over-temperature, over-power, standing wave ratio alarm and protection
• One-touch shuttle quick keyboard input

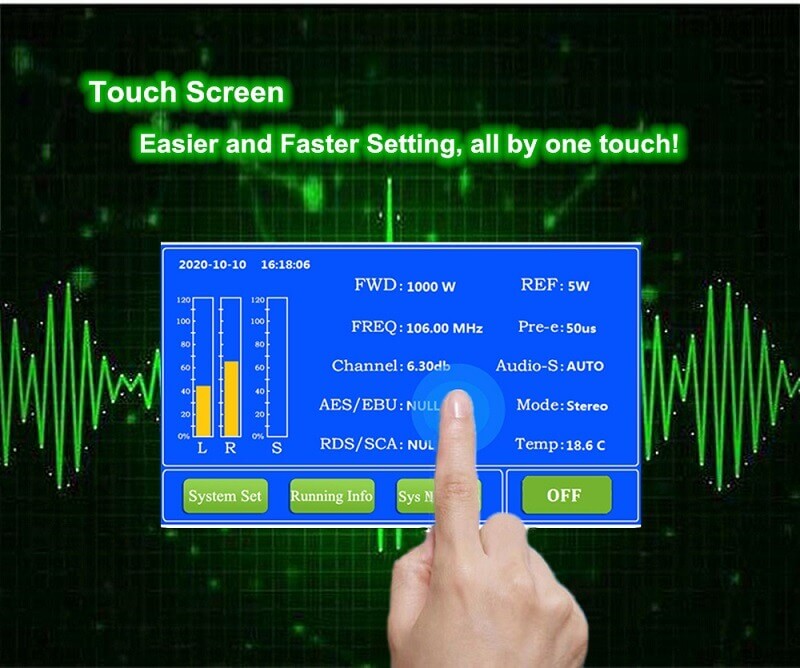

• Real-time display of operating parameters using OLED
• With TCP/IP, RS232 communication interface
• 19-inch standard chassis, height 2U

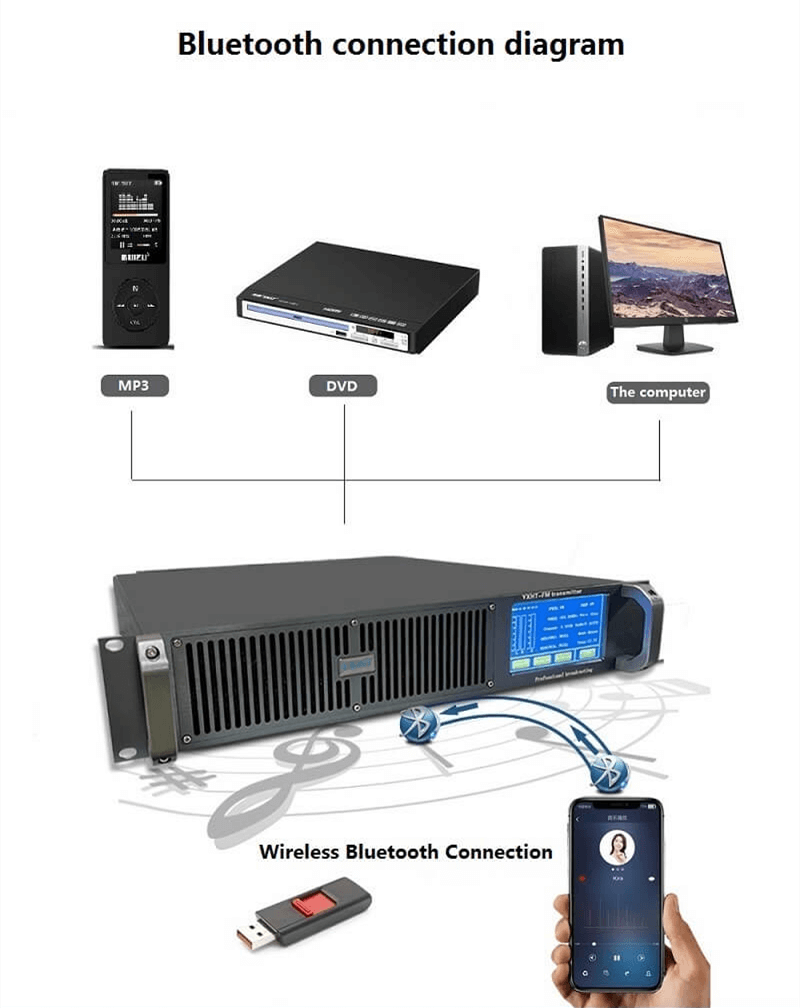

AI Smart 5.0 Blue Tooth Audio Receiver / U Disk / FM playback / Computer Upgrade Wireless Module
5.0 Blue Tooth + U disk TF card playback + FM + audio input + AI song + computer + MP3 player + mobile phone

RDS Encoder

RDS-A Encoder is well suited for most regional, local, RSL, LPFM and other medium- and small-coverage radio stations which use Ethernet for dynamic RDS data distribution. Built-in Ethernet controller supports multiple TCP/UDP ports, internet functions and remote monitoring .

RDS-A Encoder have Fully DSP concept and effective design ensures high reliability, excellent signal characteristics and gives the user many advanced features while maintaining low acquisition costs.

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
EXAMPLE 5W FM Transmitter use in the city and hometown:
I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).
I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).
I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).
Below are the approximate range of different power FM Transmitters. ( The range is diameter )
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
1KW ~ 2KW FM Transmitter : 50KM ~100KM
2KW ~5KW FM Transmitter : 100KM ~150KM
5KW ~10KW FM Transmitter : 150KM ~200KM

Certifications

Exhibition

Packing & Delivery

Contact Information

Customer reviews

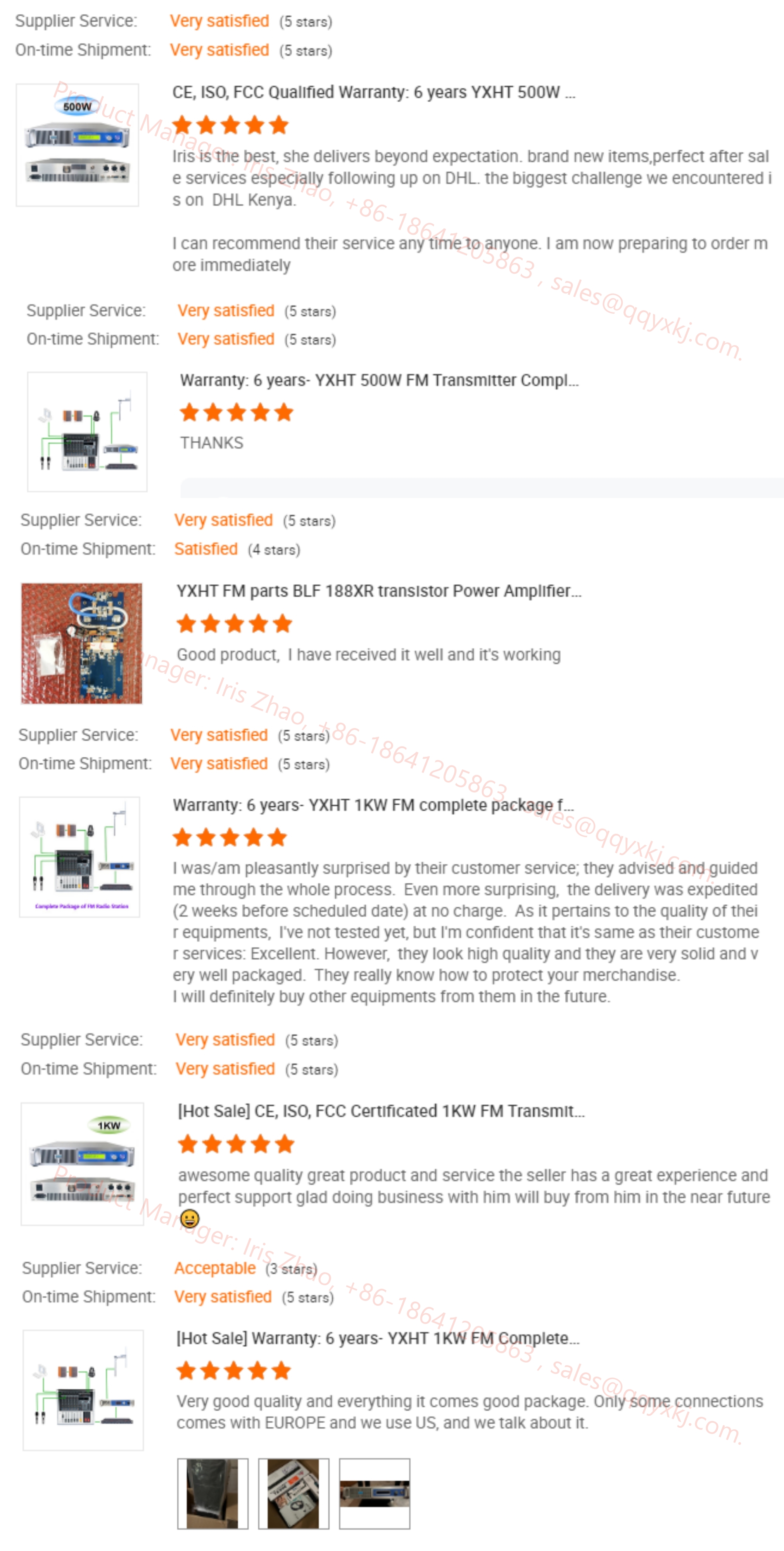

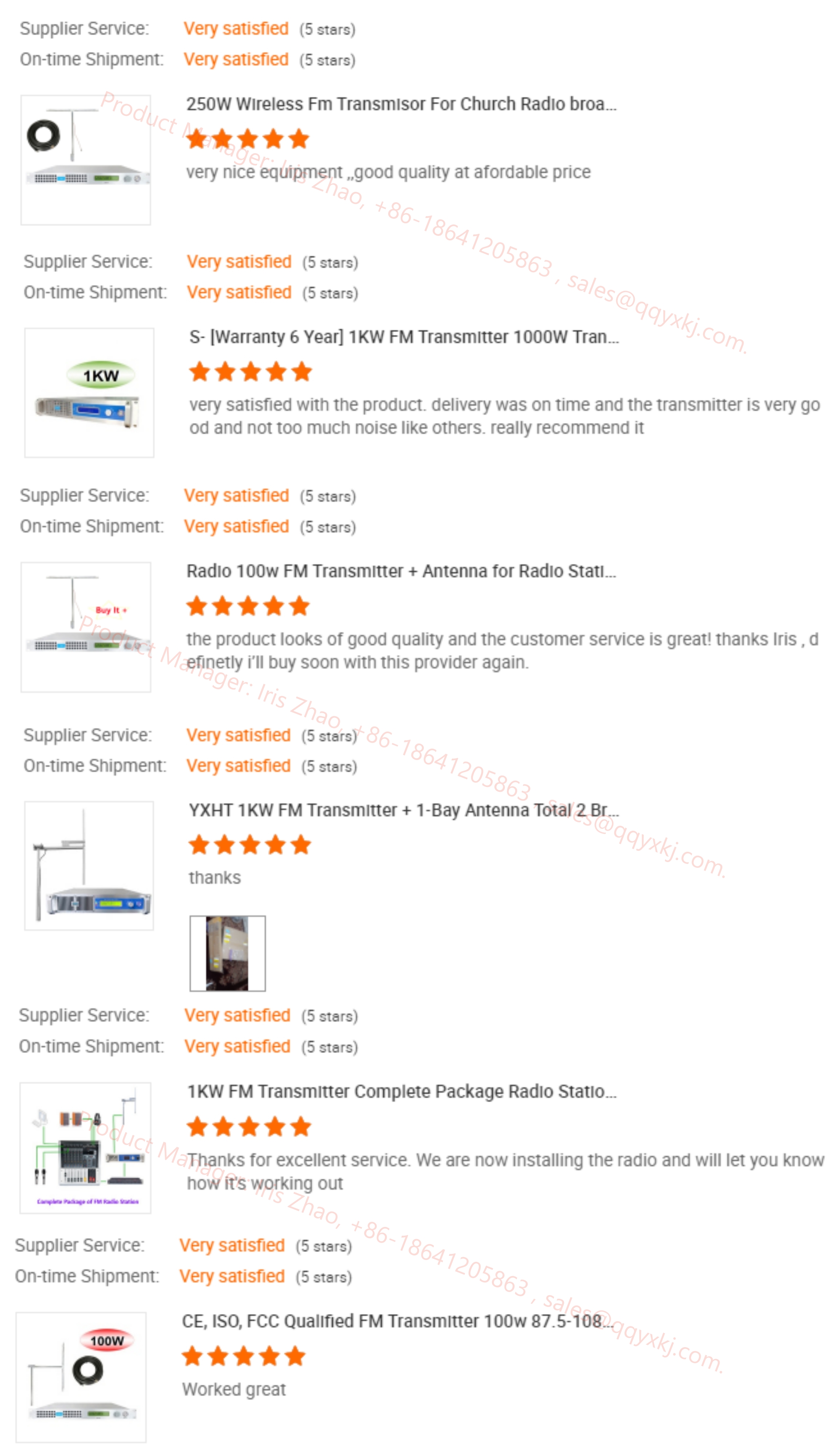

YXHT FM/TV Transmitters —- A flood of good reviews.
